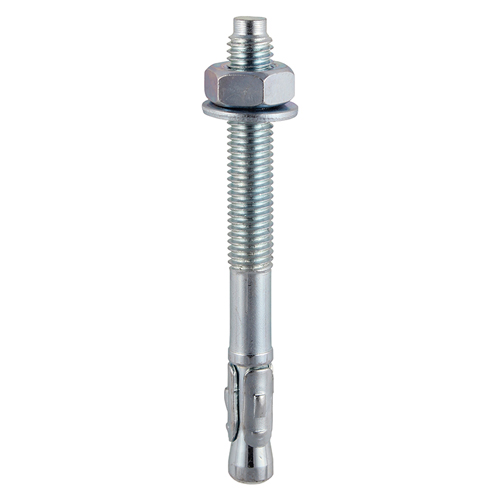

Throughbolts - Zinc
M8 x 65
£22.74 inc. VATex. VAT
Log in for 10% off
130 in Stock
Available within 48 Hours
Product Overview
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Secure Checkout by
Related Products
Air Wedge
£10.62
FirmaHold Nail & Gas RG F/G
£19.86
A-Frame Sign Wet Floor
£7.92
A solution for multiple applications, used to ensure correct weight distribution of glazed units and increase security around fixing points during frame fitting.
£23.70
Machine Screw PZ3 CSK Zinc
£4.62
| Size | M8 x 65 |
|---|---|
| Pack Qty | 100 |
| Pack Type | Box |
| Selling Unit | Box |
| Driver Bit | 9 |
| Thread Dia. mm | M8 |
| Length mm | 65 |
| Nut Socket Size mm | 13 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. mm | 8 |
| Fixture Hole Diameter mm | 9 |
| Edge Distance mm | 55 |
| Max Fixture Thickness mm | 10 |
| Min Drill Hole Depth mm | 45 |
