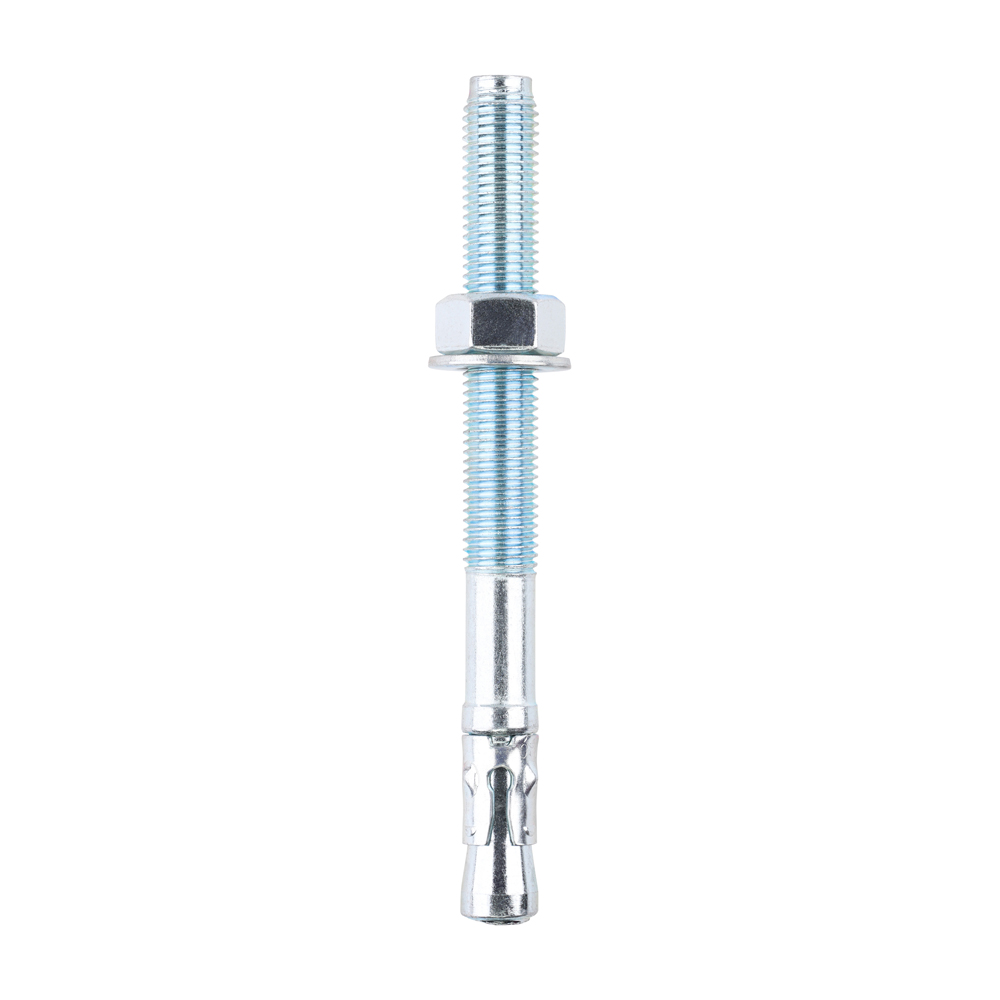

Throughbolts - Zinc
M20 x 215
£20.22 inc. VATex. VAT
Log in for 10% off
Call for Availability
Product Overview
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
This product is currently unavailable online. Please call us to check stock and place an order.
Call for StockSecure Checkout by
| Size | M20 x 215 |
|---|---|
| Pack Qty | 8 |
| Pack Type | Box |
| Selling Unit | Box |
| Driver Bit | 22 |
| Thread Dia. mm | M20 |
| Length mm | 215 |
| Nut Socket Size mm | 30 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. mm | 20 |
| Fixture Hole Diameter mm | 22 |
| Edge Distance mm | 120 |
| Max Fixture Thickness mm | 85 |
| Min Drill Hole Depth mm | 90 |
