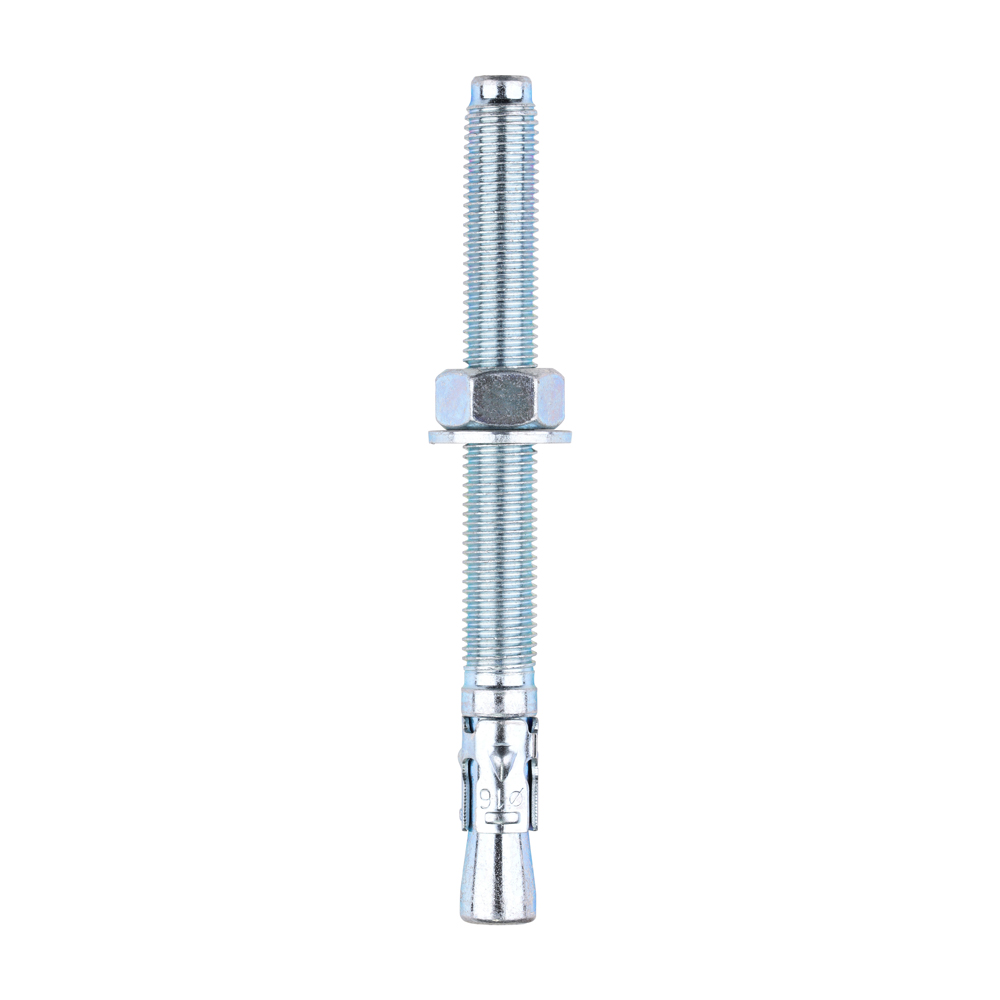

Throughbolts - Zinc
M16 x 175
£20.46 inc. VATex. VAT
Log in for 10% off
Call for Availability
Product Overview
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
This product is currently unavailable online. Please call us to check stock and place an order.
Call for StockSecure Checkout by
| Size | M16 x 175 |
|---|---|
| Item Length | 175 Millimetres |
| Pack Qty | 15 |
| Pack Type | Box |
| Selling Unit | Box |
| Driver Bit | 18 |
| Thread Dia. mm | M16 |
| Length mm | 175 |
| Nut Socket Size mm | 24 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. mm | 16 |
| Fixture Hole Diameter mm | 18 |
| Edge Distance mm | 100 |
| Max Fixture Thickness mm | 70 |
| Min Drill Hole Depth mm | 75 |
