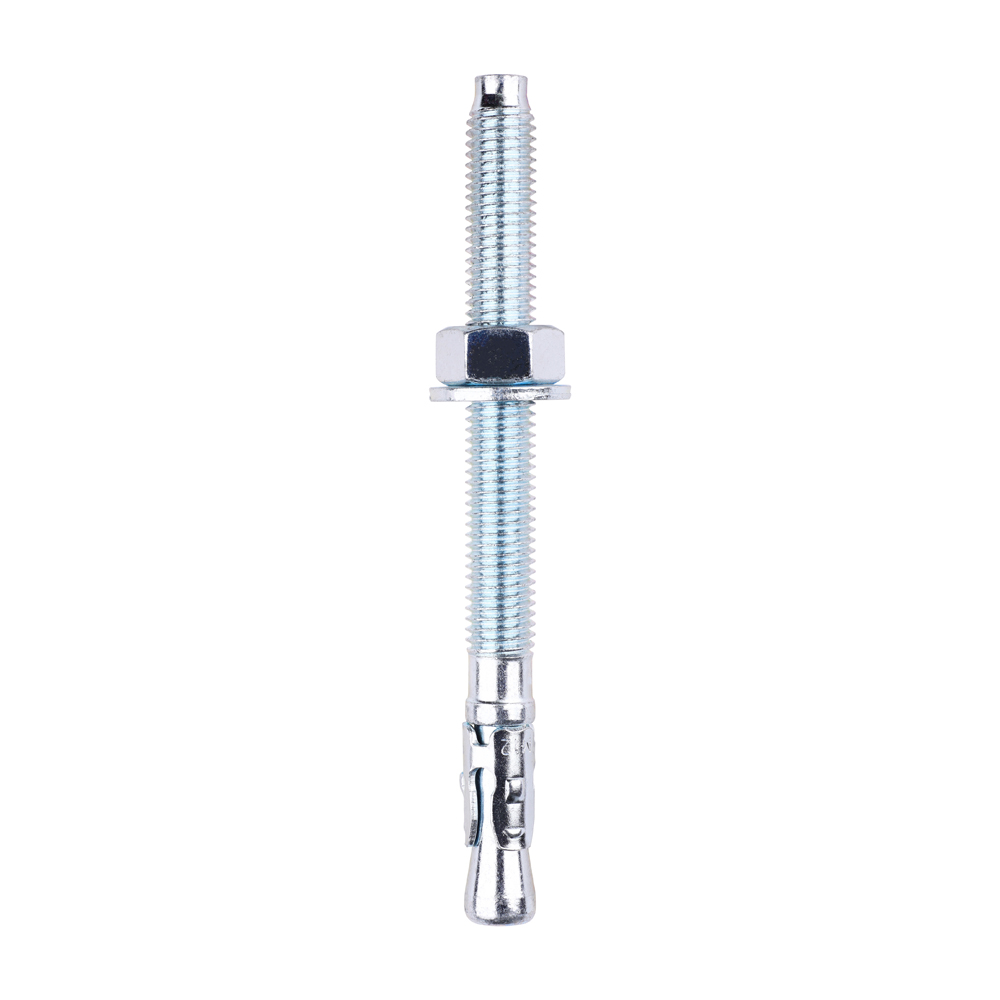

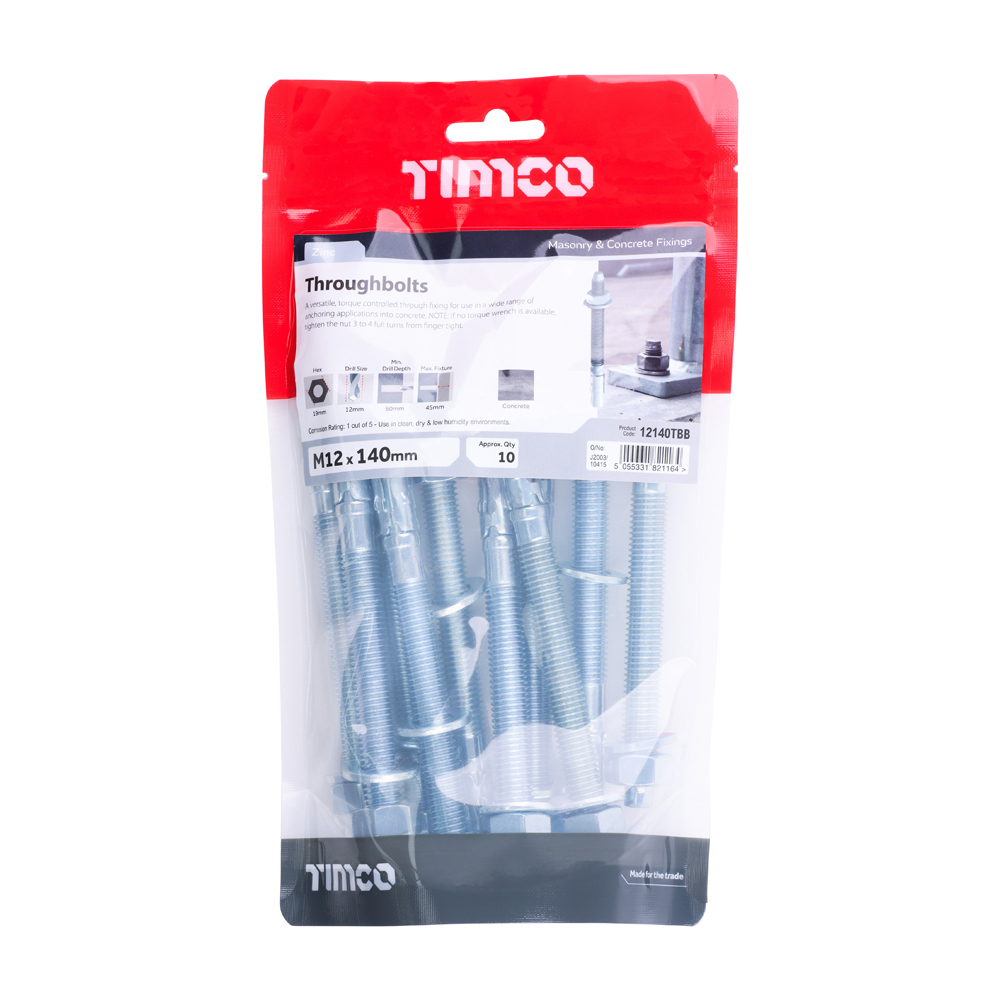

Throughbolts - Zinc
M12 x 140
£8.06 inc. VATex. VAT
Log in for 10% off
In Stock — Available within 48 Hours
Product Overview
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
Secure Checkout by
| Size | M12 x 140 |
|---|---|
| Item Length | 140 Millimetres |
| Pack Qty | 10 |
| Pack Type | TIMbag |
| Selling Unit | TIMbag |
| Driver Bit | 14 |
| Thread Dia. mm | M12 |
| Length mm | 150 |
| Nut Socket Size mm | 19 |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Dia. mm | 12 |
| Fixture Hole Diameter mm | 14 |
| Edge Distance mm | 75 |
| Max Fixture Thickness mm | 65 |
| Min Drill Hole Depth mm | 60 |
