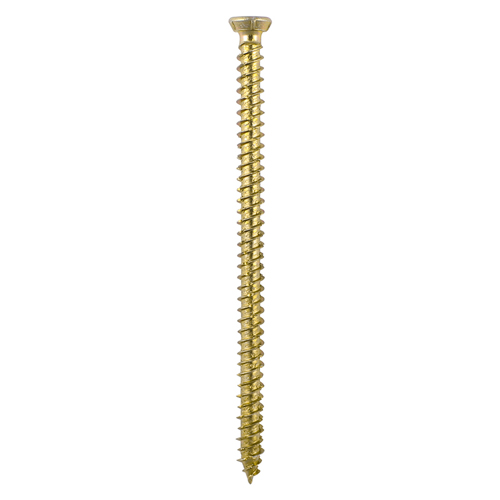

Concrete Screws - TX - Flat Countersunk - Yellow

7.5 x 80

  • BrandTIMCO
  • Product Code00080TCON
  • Pack TypeBox
  • Pack Quantity100 Box

£5.94 inc. VATex. VAT

Log in for 10% off

5 in Stock
Available For Collection

Product Overview

A rapid and effective light duty anchoring system for fixing into concrete, brick, stone, concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

  • Designed to replace traditional masonry fixings
  • TX30 TX Drive recess to reduce driver wear & prevent camming-out
  • Serrated V-threads to achieve optimum insertion into all masonry types
  • Zinc plated and yellow passivated for increased corrosion resistance
  • High-Low thread on first 30mm to aid insertion and reduce torque
  • Ideal for fitting windows and door frames
  • Flat countersunk head with five locking ribs
  • All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Secure Checkout by

Size7.5 x 80
Pack Qty100
Pack TypeBox
Selling UnitBox
Driver Bit6
Thread Dia. mm7.5
Length mm80
Diameter mm7.5
Recess TypeTX Drive
Head TypeFlat Countersunk with Ribs
FinishZinc & Yellow
Drill Hole Dia. mm6
Fixture Hole Diameter mm8
Max Fixture Thickness mm30
Min Embedment Depth mm50
